- 12 kg payload with 2 m reach Rated for a 12 kg payload and a long 2010 mm reach, giving it the working envelope to service larger workpieces and multiple stations from a single installation.
- Hollow bow-arm design A streamlined, hollow arched arm reduces interference with workpieces and enables internal cable routing for a more compact, flexible cell layout.
- Integrated welding wire feeder A built-in welding cable and wire feeder system is compactly integrated into the robot body to prevent external wear and improve wire-feeding stability and weld quality.
- Lightweight, high-stiffness structure A special casting process using automotive engine-grade aluminum alloy contributes to a lightweight body while maintaining structural rigidity for speed and precision.
- IP65-rated wrist Environmental protection at the wrist supports operation in demanding welding and handling environments on the shop floor.
- Flexible multi-mode installation Support for multiple installation modes makes the arm adaptable to operations within confined production spaces.
Description
The SIASUN SR25A-12/2.01 is a six-axis articulated industrial robot arm built around a streamlined, hollow bow-arm design that reduces interference with workpieces and enables a more compact cell layout. Rated for a 12 kg payload with a long 2010 mm reach and a stated repeatability of ±0.07 mm, it pairs a high-stiffness, lightweight structure with a robust drive system to deliver fast cycle times and stable, reliable operation. A built-in welding cable system routes wiring internally to prevent external wear and improve wire-feeding stability, while the IP65-rated wrist adds protection for demanding shop-floor conditions.
With its long reach and integrated wire feeder, the SR25A-12/2.01 is well suited to welding as well as torqueing and fastening, handling, assembly, adhesive application, and loading and unloading. Support for multiple installation modes makes it adaptable to confined spaces, and SIASUN positions the model for heavy machinery, shipbuilding, automotive manufacturing, railway vehicle production, and other industrial sectors. Its balanced configuration and lightweight construction help it maintain precision and speed across intensive production cycles.
Features
Specs
| Brand | SIASUN |
|---|---|
| Model | SR25A-12/2.01 |
| Degrees of Freedom | 6 |
| Payload | 12 kg |
| Reach | 2010 mm |
| Repeatability | ±0.07 mm |
| Wrist Protection | IP65 |
Industries
Frequently Asked Questions
It is a six-axis articulated industrial robot arm with a 12 kg payload, a 2010 mm reach, and a stated repeatability of ±0.07 mm. It features a hollow bow-arm design and a built-in welding wire feeder, with an IP65-rated wrist.
SIASUN lists welding, torqueing and fastening, handling, assembly, adhesive application, and loading and unloading. The integrated wire feeder and long reach make it particularly well suited to welding cells in sectors such as heavy machinery, shipbuilding, automotive manufacturing, and railway vehicle production.
The streamlined, hollow arched arm reduces interference with workpieces and routes cabling internally, which improves wire-feeding stability, extends cable service life, and allows more flexible posture changes in confined spaces.
You can request pricing and availability directly through Robotix Market using the quote or inquiry form on this page, and our team will respond with a tailored quotation and shipping details.
The SIASUN SR25A-12/2.01 is covered by the manufacturer's warranty as provided by SIASUN. Robotix Market ships worldwide and can coordinate documentation and order details as part of your purchase.

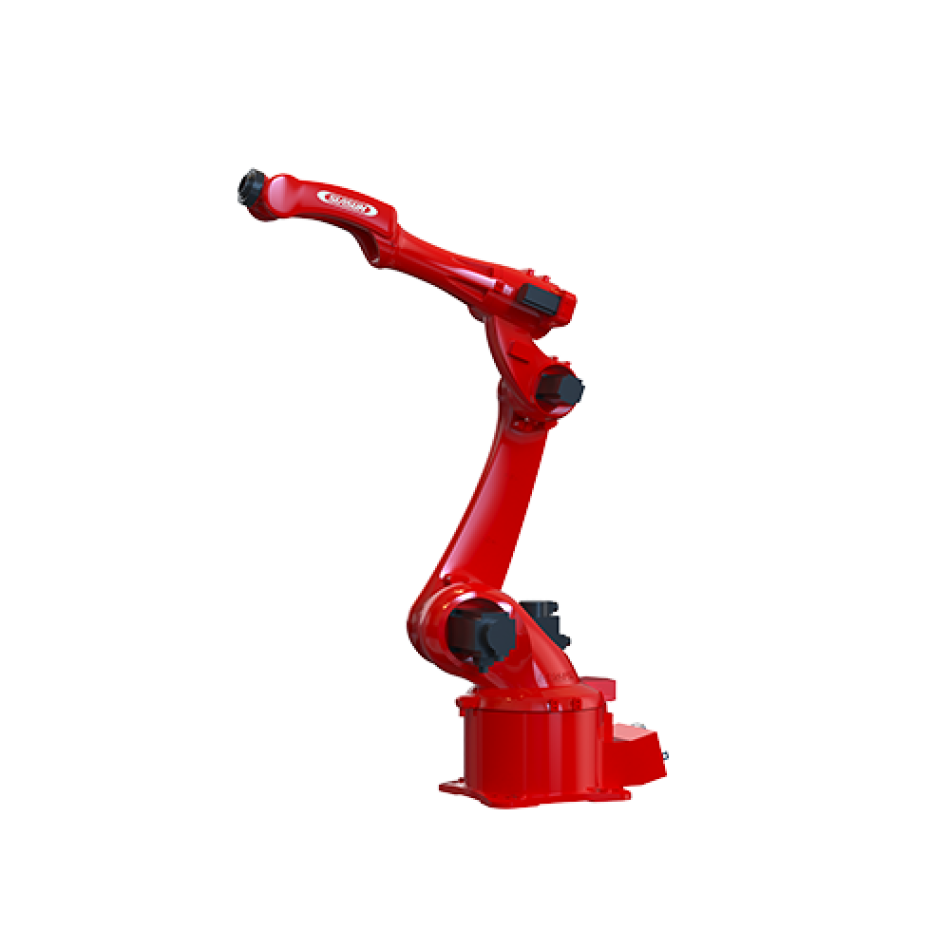

SIASUN SR25A-12/2.01 Industrial Welding Robot Arm
