- 2,000 m² on 5,200 mAh The TY720 averages 100 minutes of mowing per charge, twice the run of the TY710.
- 125-minute recharge A 3.0 A charger refills the larger battery in 125 minutes.
- No perimeter cable The mowing area is defined as a wireless virtual boundary instead of a wire around the lawn.
- RTK + VIO + IMU navigation Satellite positioning, visual-inertial odometry and an inertial sensor map the lawn and plan the route, with an RTK station in the kit.
- Zone-by-zone scheduling Several work zones can be set up, each with its own mowing time and frequency.
- Floating 220 mm deck The deck follows uneven ground, and cutting height is set from 20 to 100 mm electronically or with the on-board button.
Description

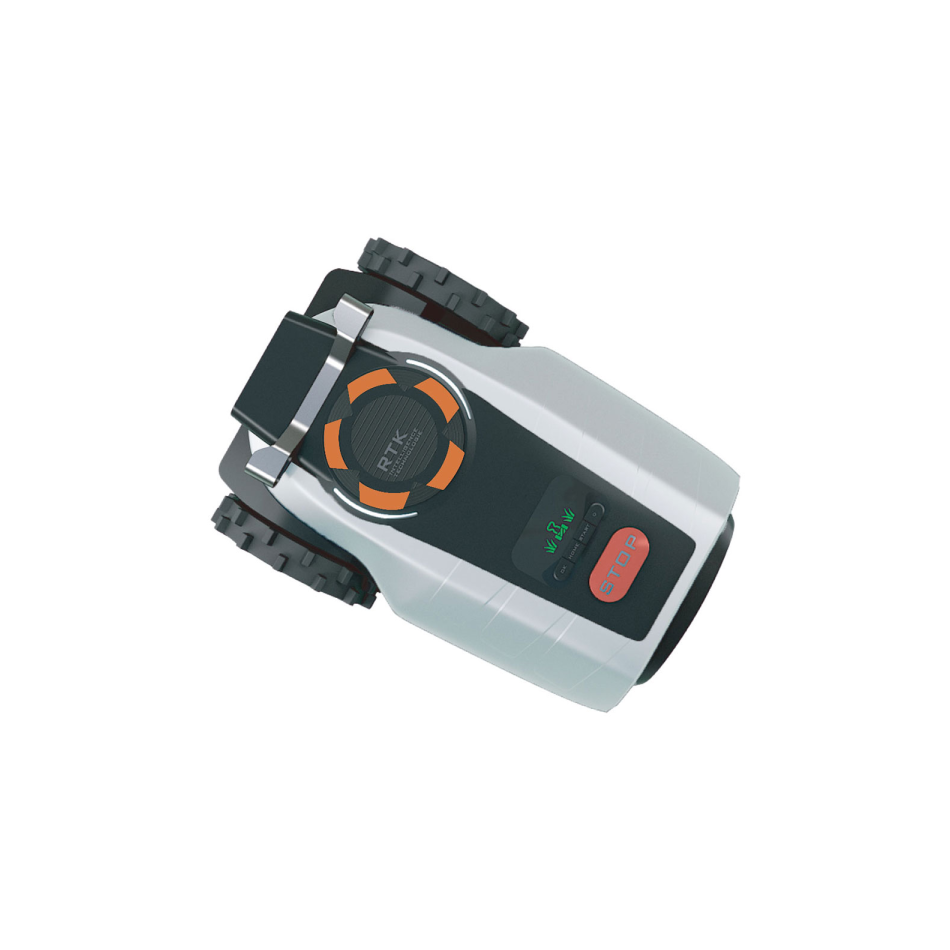

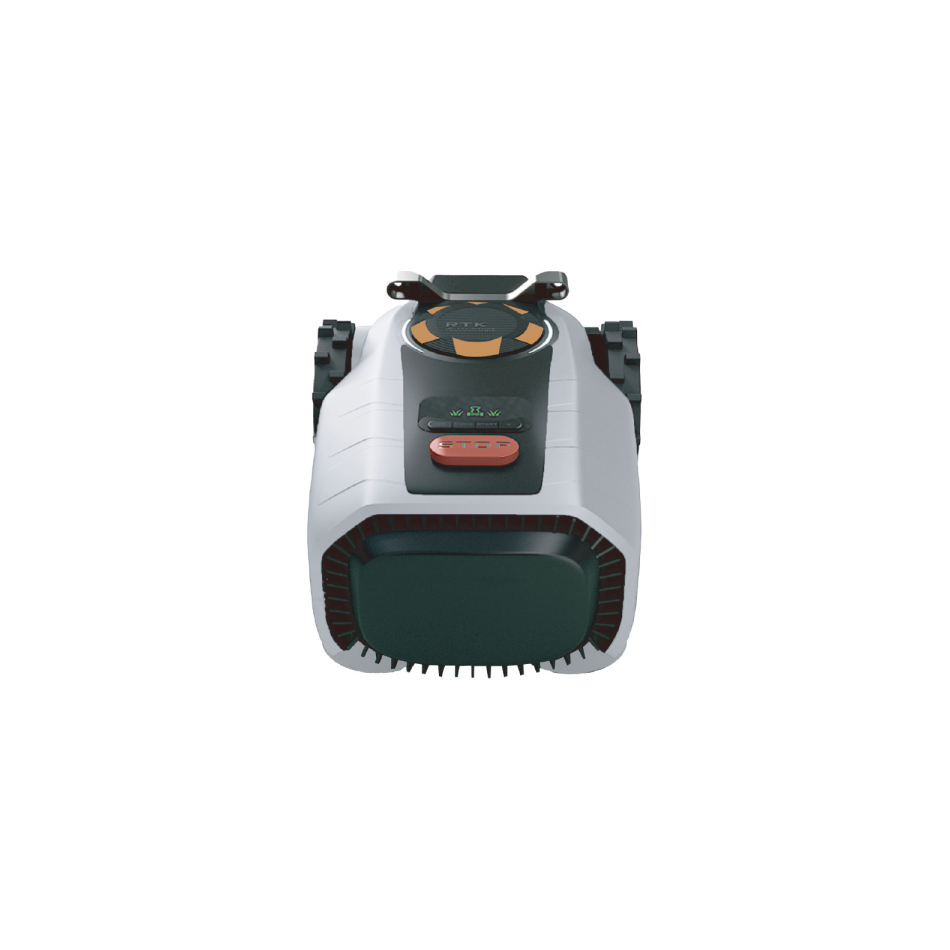

The TOUA TY720 is the long-run model of TOUA's wire-free RTK mower pair. Its 5,200 mAh lithium-ion battery gives an average of 100 minutes of mowing per charge and a rated maximum area of 2,000 m², twice the TY710's figures, and a 3.0 A charger refills it in 125 minutes where the TY710 takes 180 minutes on 2.0 A.
Those battery and charging figures are the only differences TOUA specifies between the two. Like the TY710, the TY720 mows to a wireless virtual boundary instead of a perimeter cable, plans its route with RTK satellite positioning, visual-inertial odometry (VIO) and an inertial measurement unit (IMU), and comes with an RTK station, charging station, base fitting nails and four blades.
It suits lawns beyond the TY710's 1,000 m² rating, up to 2,000 m², and gardens split into several areas, where a longer run per charge means fewer trips back to the station. Work zones are set up with their own mowing times and frequency, and the mower maps the lawn, heads home quickly to charge and carries a collision sensor.
The 220 mm deck floats with the ground, cutting height runs from 20 to 100 mm with electronic adjustment or a button, and the slope rating is 22° (42%). Settings are handled on the mower's display and keypad or in the app over Wi-Fi and Bluetooth, with optional 4G and firmware updates over the air. Area and working time are manufacturer ratings that depend on the lawn itself; battery voltage, display type, protection rating, dimensions and weight are confirmed with the quotation.
Key Capabilities
- 2,000 m² on 5,200 mAh: The TY720 averages 100 minutes of mowing per charge, twice the run of the TY710.
- 125-minute recharge: A 3.0 A charger refills the larger battery in 125 minutes.
- No perimeter cable: The mowing area is defined as a wireless virtual boundary instead of a wire around the lawn.
- RTK + VIO + IMU navigation: Satellite positioning, visual-inertial odometry and an inertial sensor map the lawn and plan the route, with an RTK station in the kit.
- Zone-by-zone scheduling: Several work zones can be set up, each with its own mowing time and frequency.
- Floating 220 mm deck: The deck follows uneven ground, and cutting height is set from 20 to 100 mm electronically or with the on-board button.
This model is offered on a quotation basis. Configuration, accessories, integration scope and delivery schedule all change the final figure, so pricing is confirmed per project rather than listed.
Buying through Robotix Market
This unit is sourced new through established distribution channels and ships worldwide with the full manufacturer warranty. Technical support is coordinated with the manufacturer's own service network. Deployment scope, configuration, and commissioning responsibilities are agreed as part of the quotation — on-site installation is not included in the product price.
Features
Specs
| Brand | TOUA |
|---|---|
| Manufacturer | Nanjing TOUA Robot Technology Co., Ltd. |
| Model | TY720 |
| Product Type | Robotic lawn mower |
| Boundary | Wireless virtual boundary (no boundary wire) |
| Path Planning | RTK + VIO + IMU |
| Intelligent Mapping | Yes |
| Max Mowing Area | 2,000 m² |
| Cutting Width | 220 mm |
| Cutting Height | 20–100 mm |
| Height Adjustment | Electronic + button |
| Float Cutting | Yes |
| Max Slope | 22° (42%) |
| Battery Type | Lithium-ion |
| Battery Capacity | 5,200 mAh |
| Battery Voltage | Confirm at quote |
| Charger Output | 3.0 A |
| Charging Time | 125 min |
| Average Working Time | 100 min |
| User Interface | On-board display and keypad + app |
| Display Type | Confirm at quote |
| Connectivity | App, Wi-Fi, Bluetooth; 4G optional |
| Firmware Updates | Over the air (FOTA) |
| Multi-Zone Mowing | Yes |
| Working-Time Schedule | Yes |
| Quick Return to Charging Station | Yes |
| Collision Sensor | Yes |
| Protection Rating | Confirm at quote |
| Dimensions / Weight | Confirm at quote |
| What's in the Box | Charging station, base fitting nails, 4 blades, RTK station |
Industries
Frequently Asked Questions
The TY720 has twice the battery (5,200 mAh against 2,600 mAh), twice the rated mowing area (2,000 m² against 1,000 m²) and twice the average working time (100 minutes against 50). Its 3.0 A charger recharges it in 125 minutes; the TY710's 2.0 A charger takes 180. Navigation, cutting deck, features and accessories are the same.
An average of 100 minutes, followed by a 125-minute recharge. Actual run time depends on grass height and density, gradients and how often the mower has to turn.
RTK is satellite positioning refined by correction data from a reference station, which is included in the kit. VIO (visual-inertial odometry) tracks movement from visual and motion data, and the IMU (inertial measurement unit) measures orientation and acceleration. Together they let the TY720 map the lawn and plan its route without a boundary wire.
Yes. Multiple work zones can be set up, each with its own mowing time and frequency, and the mower returns to its charging station when it needs power.
4G is optional. App control over Wi-Fi and Bluetooth is standard; whether a 4G module is part of your configuration is confirmed in the quotation.
It is offered by quotation — configuration, quantity and delivery are confirmed per project.
