- 40 kg, 10 kg per layer High load capacity for busy service, on layers with adjustable spacing of 195, 169, 253 and 228 mm.
- Up to 18 hours per charge Autonomous charging; a full charge takes 4 hours.
- Large touch screen Set at an ideal working height for quick daily operation.
- Independent suspension KEENON's chassis design with three patents uses vehicle-grade independent suspension with shock absorption.
- 3D perception Precise environmental perception with instant response for swift obstacle avoidance.
- Precise positioning maps Built from the robot's own spatial data collection.
- Multi-robot dispatching KEENON's patented algorithms optimise route planning across several robots.
Description

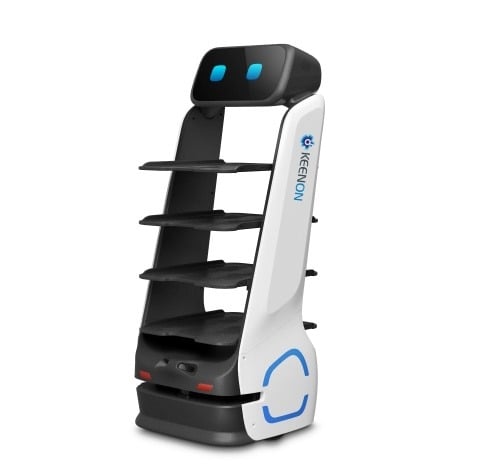

The KEENON DINERBOT T9 is KEENON's high-load-capacity delivery robot for busy restaurants: up to 40 kg per trip, 10 kg per layer, with adjustable layer spacing of 195, 169, 253 and 228 mm for different dishes.
A large touch screen at an ideal working height simplifies daily operation. KEENON's chassis design with three patents uses vehicle-grade independent suspension with shock absorption, and 3D perception with instant response avoids obstacles swiftly. The T9 builds precise positioning maps from its own spatial data, and KEENON's patented algorithms plan routes and dispatch several robots at once.
With autonomous charging, one charge lasts up to 18 hours and a full charge takes 4 hours. It measures 500 × 527 × 1266 mm, weighs 63 kg, moves at 0.1–1.0 m/s, climbs 5° slopes and needs passages from 70 cm.
Robotix Market supplies the DINERBOT T9 new through established distribution channels, with the full KEENON manufacturer warranty and worldwide shipping. The brochure on this page compares the T3, T8, T9, T10 and T11 side by side.
Official Product Videos
Features
Specs
| Brand | KEENON Robotics |
|---|---|
| Model | DINERBOT T9 |
| Robot type | High-capacity restaurant delivery robot (wheeled) |
| Dimensions (W × D × H) | 500 × 527 × 1266 mm |
| Weight | 63 kg |
| Total load capacity | 40 kg (10 kg per layer) |
| Layer spacing | Adjustable: 195, 169, 253 and 228 mm |
| Speed | 0.1–1.0 m/s |
| Minimum passage width | 70 cm |
| Slope | 5° |
| Chassis | Vehicle-grade independent suspension with shock absorption (three patents) |
| Perception | 3D perception with instant obstacle avoidance |
| Screen | Large touch screen at working height |
| Battery life | Up to 18 h (depends on use and conditions) |
| Charging time | 4 h (15 % to 100 %) |
| Charging | Autonomous charging |
| Fleet | Patented route planning and multi-robot dispatching |
| In the box | Charging pile not included; full contents confirmed with your quotation |
| Warranty | KEENON manufacturer warranty |
Industries
Product Brochure
Keenon DINERBOT T9 Restaurant Delivery Robot – Product Brochure
The Robotix Market brochure with every capability and the full technical specification — to save, print or forward.
Download Brochure (PDF)Frequently Asked Questions
The KEENON DINERBOT T9 is priced at QAR 40,700 in your market. For volume or project orders, contact us for a business quote.
The charging pile is not included with the T9. We confirm the complete contents with your quotation.
The DINERBOT T9 is the high-capacity model: 40 kg on adjustable layers and up to 18 hours per charge. The DINERBOT T3 is the enclosed model: a 180 L cabin with automatic doors, autonomous elevator riding and interior disinfection, 40 kg, passages from 75 cm. The DINERBOT T8 is the compact model: 20 kg, passages from 55 cm, tray sensors and a 10.1-inch touchscreen. The DINERBOT T10 is the marketing model: 40 kg on three trays, a 23.8-inch advertising screen and a movable head. The DINERBOT T11 is the narrow-aisle model: passes 49 cm aisles, 20 kg, AI tray detection and a large display. The brochure on this page compares all five side by side.
Busy restaurants and canteens that move many dishes per trip and run long shifts on one charge.
The T9 runs up to 18 hours per charge with autonomous charging, and a full charge takes 4 hours. Battery life depends on use and conditions.
The KEENON DINERBOT T9 is supplied new with the KEENON manufacturer warranty. Robotix Market ships worldwide; contact us for delivery terms to your country.
